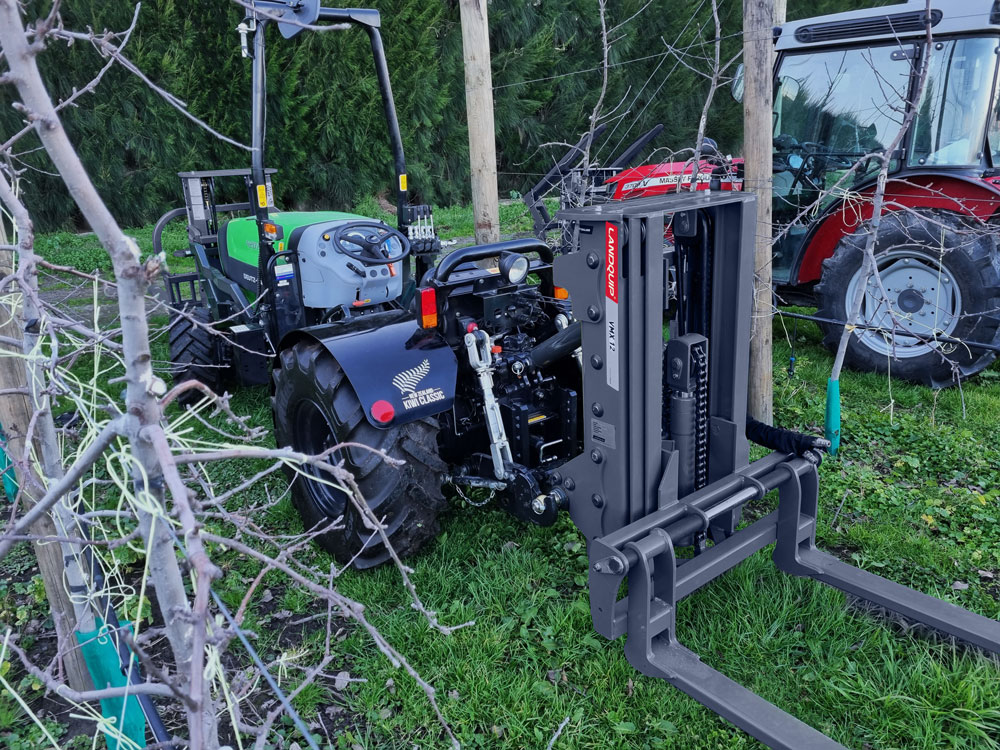

With the VMX Forklift, Landquip set out to solve the problems users faced with existing tractor-mounted forklifts. VMX stands for ‘visibility maximum’ – Our focus was to give the operator a clearer view of their load for quicker and safer operation.
Our patented clear view forks and open carrier frame lets the operator see directly down the outside of the frame to the fork tips. We mount the tilt cylinder out of the way vertically in front of the bonnet of the tractor. The rams are tucked away into the mast to allows the driver to see clearly through the centre of the mast.
The VMX Forklift is OSH approved.
VMX Forklifts
UNITS
- ENQUIRE NOW
VINYARD/ GENERAL PURPOSE MODEL
- Ideal for grapes, orchard or general purpose
- Heavy-duty 1.2 tonne lift capacity to 2.7m lift height
- Good for applications where height is not restricted
- More lift height and weight options available
- ENQUIRE NOW
COMPACT ORCHARD 3-STAGE MODEL
- 3 stage design allows a very compact mast height
- Heavy-duty 1.2 tonne lift capacity to 1.7m lift height
- Ideal for moving around and under trees without damaging fruit
- Will lift up to 2 bins to truck deck height
- Freelift standard (600mm freelift travel)
- More lift height, and weight options available
- ENQUIRE NOW
LARGE 2-STAGE MARKET GARDEN MODEL
- Ideal for cropping use
- 2 Stage
- Heavy-duty 1.5 tonne lift capacity to 3.0m lift height
- Good for applications where height is not restricted
- High ground clearance (450mm)
- More lift height, and weight options available
- ENQUIRE NOW
ECONOMY FORKLIFT
- Ideal for beekeepers, small farm holdings, nurseries and lifestylers. A good value, all roller mast.
- 600kg lifting capacity
- 2.1m, and 2.4m lift height options
- Low maintenance, no greasing required
- All roller designed mast, including roller chain
- CAT 1, 3-point linkage mounts or front mounted
- Fold up forks
- ENQUIRE NOW
New Holland super-steer forklift mounting system
- Doesn’t restrict the oscillation/ steering of the tractor
- Awesome stability weight is transferred directly through the front wheels rather than the chassis
- Recommended use: TNF, TNN, TNS tractors (plus A-Series)
- ENQUIRE NOW
TOOL MOUNTING SYSTEM
- Implements easily attached with Eurohitch system
- Up to 3.0m lift height
- Can be adapted to fit the front of the tractor and 3-point linkage
FEATURES
Ultimate visibility
Ultimate visibility – patented clearview fork design
Folding forks
When not using the forklift the forks can be folded out of the way
See through forks
The patented see through forks makes it easier to see the tip of the fork reducing the chance of damaging produce
The IMAX System
The unique IMAX system integrates the mountings, tilting system and sideshift mechanism in one ultra compact unit, virtually hidden by the front of the tractor and giving almost unobstructed vision down the side of the bonnet.
Back Frame
The optional back frame adds safety when carrying more than one bin
Ultimate visibility
Ultimate visibility – patented clearview fork design
Folding forks
When not using the forklift the forks can be folded out of the way
See through forks
The patented see through forks makes it easier to see the tip of the fork reducing the chance of damaging produce
The IMAX System
The unique IMAX system integrates the mountings, tilting system and sideshift mechanism in one ultra compact unit, virtually hidden by the front of the tractor and giving almost unobstructed vision down the side of the bonnet.
Back Frame
The optional back frame adds safety when carrying more than one bin
SPECIFICATIONS
High Visibility Range
PowerBlock
An optional 3rd service for powering other implements is available
HydraFloater
An optional hydraulic accumulator is for the main lift rams reduce and bruising of fruit
– Models available:2, or 3 stage
– Lift height:1.1m – 4.1 m
– Lift capacity:1200kg + 1500kg
– Unit weight:200kg – 550kg
– Hydraulics required:12-60 litres/min, 2500-3000psi
CASE STUDY
